Replies in webhooks

📘

Enabling webhooks

If you're not using FunnelFox webhooks yet, learn how to enable them here.

You can get user's onboarding replies automatically from onboarding.completed event webhook.

Please find detailed description of this webhook structure in our API reference.

🚧

Final screen

In order to receive onboarding.completed event webhook you should designate one screen as final. To do that set your final screen's ID as final or starting with final. Webhook will be sent when user enters the final screen.

Data structure

Replies in webhooks are provided in JSON format.

Each reply is an object inside replies list with the following entities:

1. screen contains information about screen where reply was provided:

   • custom_id - ID of the screen that was set in builder
   • id - FunnelFox ID of the screen
   • index - Index number of the screen

2. element contains information about element:

   • custom_id - ID of the element that was set in builder
   • id - FunnelFox ID of the element
   • type - type of the element

3. state contains user's answer:

   • value - exact reply: chosen option, typed text etc.

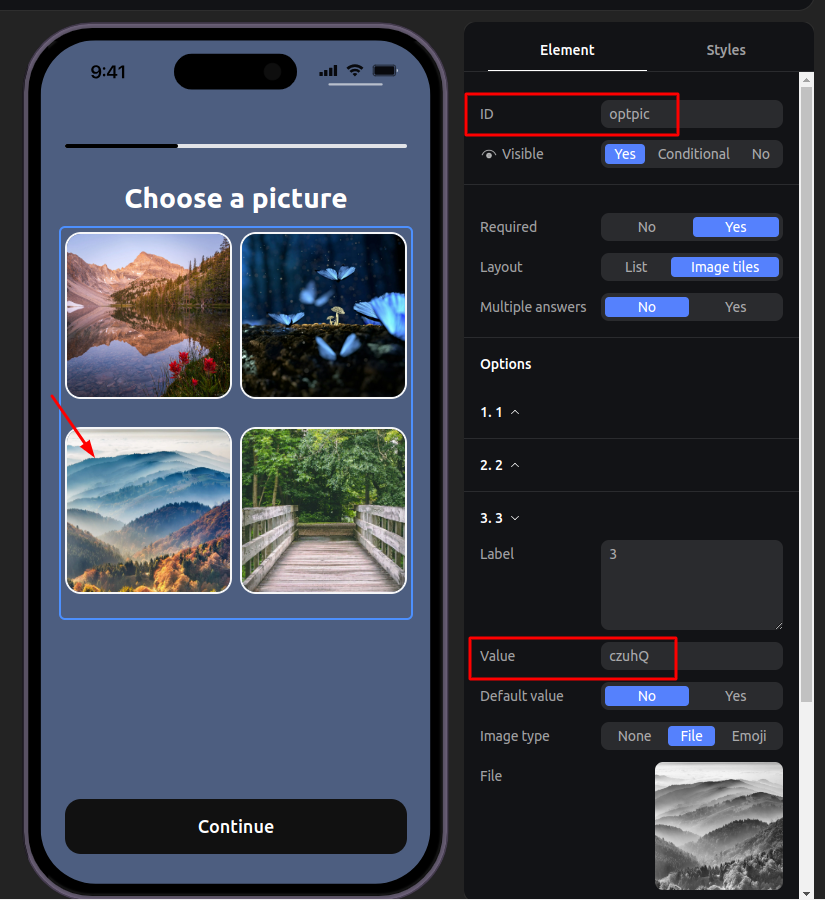

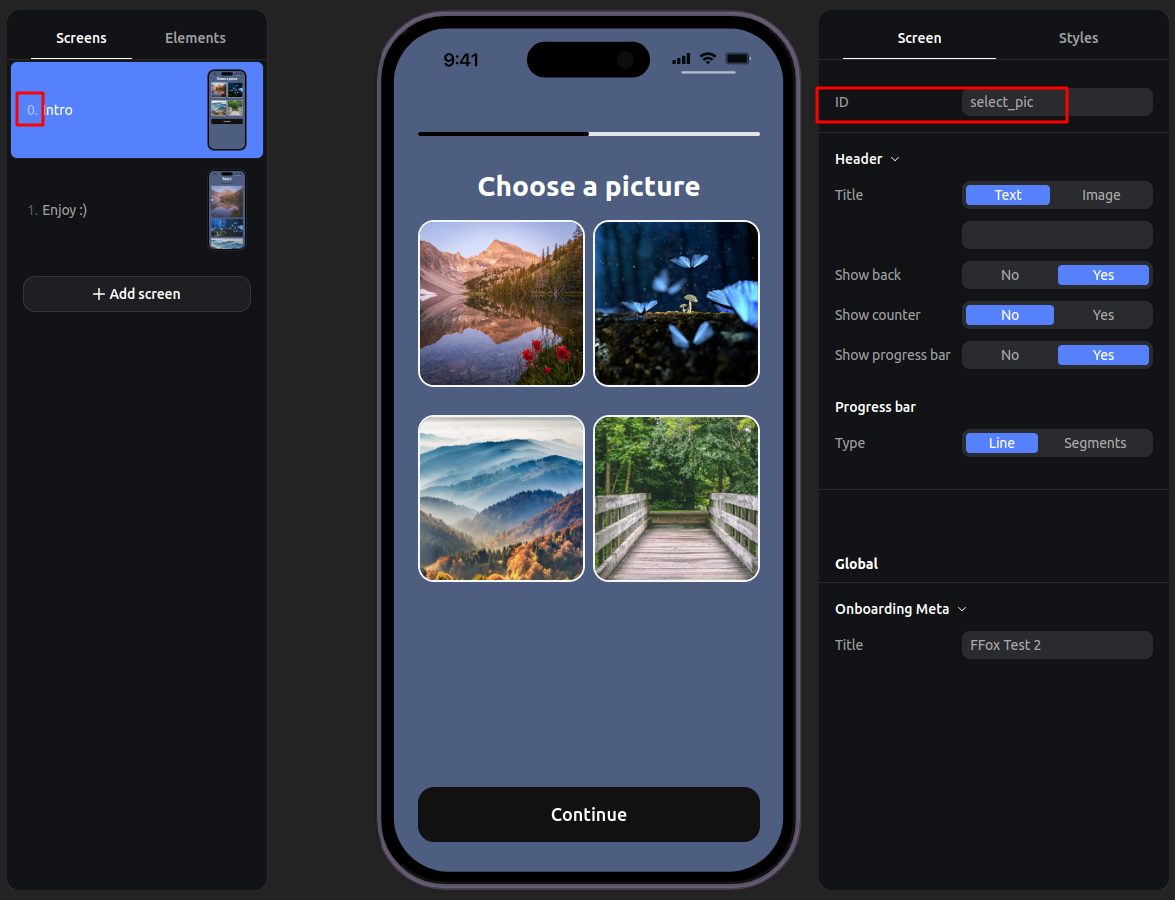

For example, if a user selects option 3 with default Value czuhQ in the Options element with ID optpic on the screen with select_pic ID, the resulting JSON will look like this:

{
  "screen": {
    "custom_id": "select_pic",
    "id": "ffox_id",
    "index": 0
  },
  "element": {
    "custom_id": "optpic",
    "id": "ffox_id",
    "type": "Options"
  },
  "state": {
    "value": "czuhQ"
  }
}
